SKU:12401120
Brand:Tweco
Availbility:
In stock

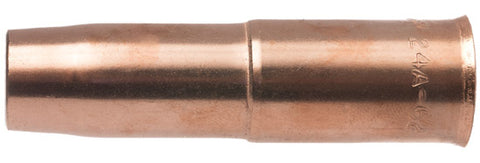

Tweco 24A-62 Slip-On Nozzle 5/8" 2/Pack - (12401120)
Save $1.87
Sale price$9.97Regular price
$11.84
Free Shipping Over $75
Satisfaction Guaranteed
Secure Checkout
Enhance Your Gear With Accessories
Tweco 24A-62 Slip-On Nozzle 5/8" 2/Pack - (12401120)
Sale price$9.97Regular price
$11.84
Professional & WeldSkill 24 Series Air Cooled Nozzles are offered in 2-piece, coarse (CT) and fine thread (FN) series, as well as slip-on. 2-piece nozzles require 34CT or 34FN Insulator; sold separately.
Features
- Used in light to medium duty welding application up to 400 amperes
- Formed and 3-piece nozzle designs
- Easy identification - Part No. rolled stamped on the outside surface
- Tapered nozzle 3-piece design - does not require an additional insulator
- Nozzle threads onto the conductor tube
| Model | Cooling | Inside Diameter | Nozzle Design | Nozzle Style | Nozzle/Contact Tip Relationship | Outside Diameter | Series |
| 1240-1101 | Air |
3/8 in. 9.5 mm |
Standard Short Stop | Slip-On | 1/8" (3.2 mm) Tip Recess |
0.750 in. 19.05 mm |
24A Series |
| 1240-1110 | Air |
1/2 in. 12.7 mm |
Standard | Slip-On | Adjustable Tip Recess - Tip Protruding |
0.750 in. 19.05 mm |
24A Series |
| 1240-1111 | Air |
1/2 in. 12.7 mm |
Standard Short Stop | Slip-On | 1/8" (3.2 mm) Tip Recess |
0.750 in. 19.05 mm |
24A Series |
| 1240-1120 | Air |
5/8 in. 15.9 mm |
Standard | Slip-On | Adjustable Tip Recess - Tip Protruding |
0.750 in. 19.05 mm |
24A Series |
| 1240-1121 | Air |
5/8 in. 15.9 mm |
Standard Short Stop | Slip-On | 1/8" (3.2 mm) Tip Recess |
0.750 in. 19.05 mm |
24A Series |
| 1240-1130 | Air |
3/4 in. 19.5 mm |
Standard | Slip-On | Adjustable Tip Recess - Tip Protruding |
0.750 in. 19.05 mm |
24A Series |
| 1240-1220 | Air |
5/8 in. 15.9 mm |
Standard, Heavy Duty | Slip-On | Adjustable Tip Recess - Tip Protruding |
0.750 in. 19.05 mm |
24A Series |
| 1240-1230 | Air |
3/4 in. 19.5 mm |
Standard, Heavy Duty | Slip-On | Adjustable Tip Recess - Tip Protruding |
0.750 in. 19.05 mm |
24A Series |
| 1240-1231 | Air |
3/4 in. 19.5 mm |
Standard Short Stop | Slip-On | 1/8" (3.2 mm) Tip Recess |
0.750 in. 19.05 mm |
24A Series |
| 1240-1301 | Air |
3/8 in. 9.5 mm |
Standard Short Stop | Slip-On | 1/8" (3.2 mm) Tip Recess |
0.750 in. 19.05 mm |
24A Series |
| 1240-1404 | Air |
3/8 in. 9.5 mm |
Standard Short Stop | Thread-On | 5/32" (3.97 mm) Tip Recess |
1.070 in. 27.2 mm |
24CT Series |
| 1240-1414 | Air |
1/2 in. 12.7 mm |
Standard Short Stop | Thread-On | 5/32" (3.97 mm) Tip Recess |
1.070 in. 27.2 mm |
24CT Series |
| 1240-1422 | Air |
5/8 in. 15.9 mm |
Tapered | Thread-On | 1/16" (1.59 mm) Tip Recess |
1.070 in. 27.2 mm |
24CT Series |
| 1240-1423 | Air |
5/8 in. 15.9 mm |
Tapered | Thread-On | 1/2" (12.7 mm) Tip Recess |
1.070 in. 27.2 mm |
24CT Series |
| 1240-1424 | Air |
5/8 in. 15.9 mm |
Standard Short Stop | Thread-On | 5/32" (3.97 mm) Tip Recess |
1.070 in. 27.2 mm |
24CT Series |
| 1240-1434 | Air |
3/4 in. 19.5 mm |
Standard Short Stop | Thread-On | 5/32" (3.97 mm) Tip Recess |
1.070 in. 27.2 mm |
24CT Series |
