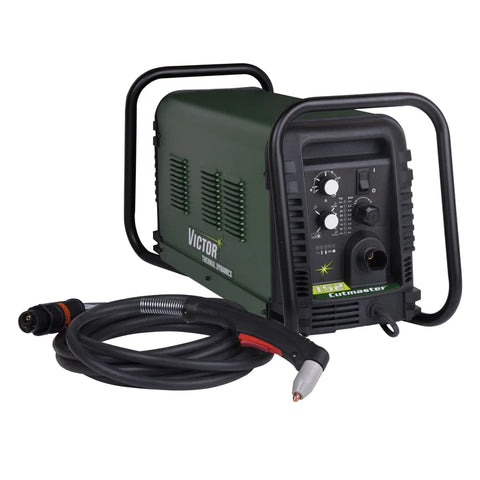

Thermal Dynamics Cutmaster 152 Plasma Cutter - 20ft (1-1730-1)
Save $1,400.00
The Cutmaster 152, weighing only 62 lbs, offers multi-voltage 1-or 3-phase input capability and provides 120 amps of cutting power for a 30 mm (1 1/4 in.) recommended cut and 50 mm (2 in.) maximum cut.This compact unit, like all other Cutmasters, comes standard with the 1Torch® providing you with the well known comfort and reliability famous throughout the industry.
Sale price$5,499.00Regular price
$6,899.00
Free Shipping Over $75
Satisfaction Guaranteed
Secure Checkout
Enhance Your Gear With Accessories
Thermal Dynamics Cutmaster 152 Plasma Cutter - 20ft (1-1730-1)
Sale price$5,499.00Regular price
$6,899.00
The Cutmaster 152, weighing only 28.1 kg (62 lbs), offers multi-voltage 1-or 3-phase input capability and provides 120 amps of cutting power for a 30 mm (1.25 in.) recommended cut and 50 mm (2 in.) maximum cut. This compact unit, like all other Cutmasters, comes standard with the 1Torch® providing you with the well known comfort and reliability famous throughout the industry.
What's Included:
• Lightweight design
• Trigger latch feature prevents hand fatigue during long cuts. Auto Pilot Restart feature instantly reignites the pilot arc while cutting expanded metals.
• Multiple Torch Capability (Hand, Mechanized, Automation)
• The Industry’s only 60 Amp Drag Tip
• Convenient storage compartment for spare and consumable parts
• Universal selectable input power from 208 to 460 VAC + 10%, single or three phase, 50 or 60 Hz.
• Power Supply
• 20 ft. (6.1m) Lead
• 1Torch SL100, 75 deg. Head
• 10 ft. (3.0m) Input Power Cable, Work Cable without 20 Amp Plug (460V) and Clamp
• Spare Parts Kit
• Operating Manual
• Warranty: 4 years
| Specifications | |
|---|---|
| Input Ratings | 208-230/460 VAC, 1/3 ph, 50/60 Hz 600 VAC, 3 ph, 50/60 Hz 400 VAC, 3 ph, 50 Hz |
| Duty Cycle | 120 A @ 80 % duty cycle 100 A @ 100 % duty cycle |
| Gas Pressure | 4.8 bar ( 70 psi ) |
| Gas Flow | 212 l/min ( 450 cfh ) |
| Pierces | 25 mm ( 1 in. ) |
| Cuts Manual | 30 - 50 mm ( 1 1/4 - 2 in. ) |
| Dimensions, L x W x H | 762 x 305 x 381 m ( 30 x 12 x 15 ft ) 6.1 m ( 20 ft ) 15.2 m ( 50 ft ) |
| Weight | 28.1 kg ( 62 lbs ) |
