Features

  • Diamond Core Technology™ – Delivers a forgiving arc, excellent out-of-position arc stability, low spatter and a wide voltage
    sweet spot at a given wire feed speed for steel, stainless steel or aluminum.
  • MAXTRAC® cast aluminum industrial wire drive – Features dual driven rolls, regulated wire feed speed control, brass-to-brass
    connections and Lincoln’s 100% wire supporting split wire guide system.
  • Digital meters - For set up, meters display your preset voltage and wire feed speed. During welding, actual voltage is displayed.
  • New! Magnum® PRO gun and cable 15 ft. (4.5 m) - Makes it easy to reach your work.
  • Copper Plus® contact tips - Larger tip diameter and mass improves heat dissipation to increase tip life.
  • Add a spool gun – The POWER MIG® 256 is spool gun ready for the premium Magnum® 250LX gun and spool gun capable with the
    Magnum® SG (requires adapter).
  • 115V auxiliary receptacle - (208/230V model only) to power a grinder or other auxiliary equipment in your work area.
  • New! Great value-adding features –
    • Coil Claw™ Cable Management system keeps your workstation organized.
    • Convenient top-mounted gun expendables tray.
    • All metal case front.

NOTE: The POWER MIG® 256 cannot be powered by an engine-driven welder.

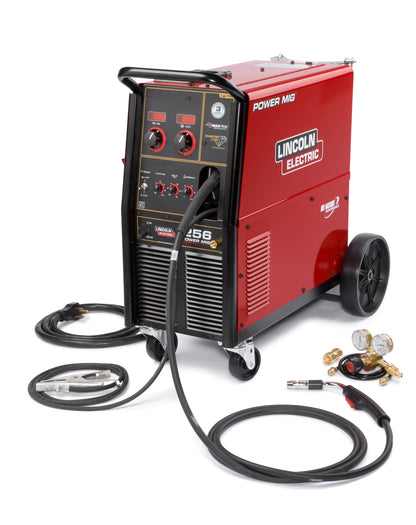

Includes:

  • Magnum® PRO 250L gun with 15 ft.(4.5 m) cable assembly (K3081-1)
  • Top-mounted gun expendables tray.
  • Built-in undercarriage with easy-load gas cylinder platform.
  • Work clamp and 10 ft. (3.0 m) cable.
  • Drive roll and wire guide to feed both .035 in. & .045 in. (0.9 & 1.2 mm) wire.
  • Gas regulator and hose kit for argon blend gases. (For use with CO2 shielding gas, order a Lincoln Electric S19298 CO2 shielding gas bottle adapter.) (K586-1)
  • Large color coded procedure recommendation sheet.

Lincoln Rebate

Input Power
  • 230/460/575/1/60
Rated Output
  • 250A/26V/40%
Input Current
  • 56/52A
Output Range
  • 30-300A DC
Solid Wire Size Range
  • .025 - 3/64 in. (0.6 - 1.2 mm)
Cored Wire Size Range
  • .035 - .045 in (0.9 - 1.2 mm)
Wire Feed Speed Range
  • 50-700
Dimensions (H x W x D) 31.8 in x 18.9 in x 38.8 in (808 mm x 480 mm x 985 mm)
Net Weight 245.00 (111.13 kg)
Lincoln MIG 256 Spec Sheet
