SKU:951846
Brand:Miller Electric
Availbility:
In stock
Miller Multimatic® 235 Multiprocess Welder w/ EZ-Latch™ Running Gear- 240V - 951846
Save $940.25
Built for professionals in the manufacturing/fabrication, MRO and construction fabrication and education segments, the Multimatic 235 allows welders of all skill levels to be more efficient for all their MIG, flux-cored, stick and DC TIG welding needs. Setup is quick and easy, letting operators have faster uptime and weld with confidence.
Sale price$3,517.00Regular price
$4,457.25
Free Shipping Over $75
Satisfaction Guaranteed
Secure Checkout
Enhance Your Gear With Accessories
Miller Multimatic® 235 Multiprocess Welder w/ EZ-Latch™ Running Gear- 240V - 951846
Sale price$3,517.00Regular price
$4,457.25

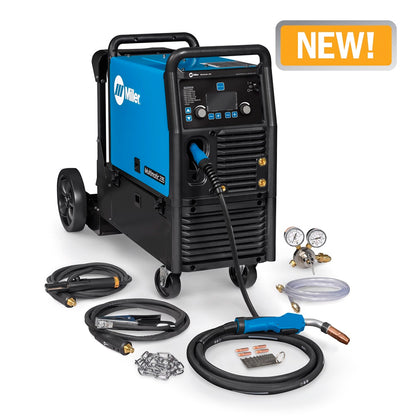

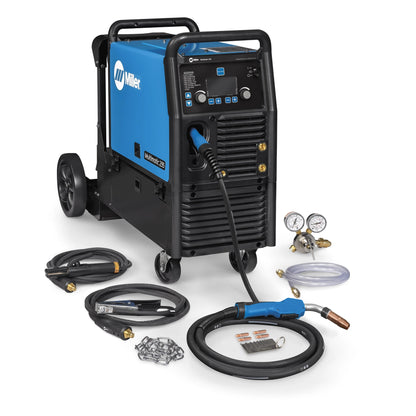

What's Included
- Power source with 7 ft. (2.1 m) power cord
- 15 ft. (4.5 m) 250-amp MDX™-250 MIG gun w/Bernard® AccuLock™ MDX consumables for .030/.035 in. (0.8/0.9 mm) wire
- 10 ft. (3 m) cable w/electrode holder & 50 mm Dinse-style connector
- 10 ft. (3 m) work cable w/clamp & 50 mm Dinse-style connector
- Flow gauge regulator and gas hose for argon or AR/CO2 mix
- Extra contact tips
- .030/.035 in. (0.8/0.9 mm) reversible drive rolls
- EZ-Latch™ single-cylinder running gear
- Chain to secure gas cylinder
- Material thickness gauge
Versatility
Multiprocess Capabilities of MIG, Flux Cored, DC Lift Arc TIG and DC Pulsed TIG

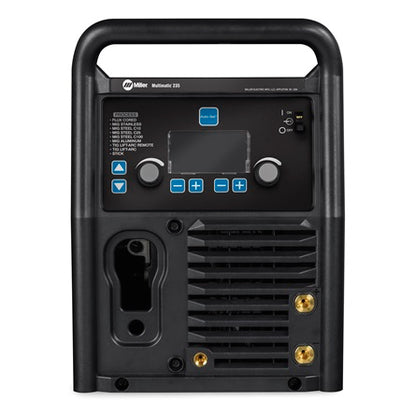

Easy-to-understand interface
4.3-inch color LCD display ensures proper machine setup and parameter selection, reducing setup time and increasing weld time
Auto-Set™ Elite
Offers predefined weld settings to increase ease of use and ensure that the job is done right for operators of all skill levels
Portability - Machine only weighs 63 lb
Weight is reduced to make it easier to take the welder to where the work is, plus the added convenience of one machine versus two or more.

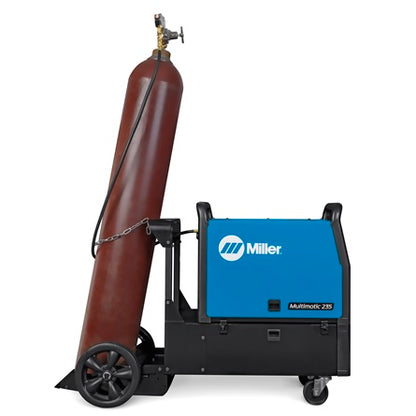

EZ-Latch™ running gear
Operators no longer need to use lift truck to load machine and running gear into the truck. Latches secure machine to running gear. Simply loosen the latch retaining knob and rotate latches to disengage machine from running gear for easy portability
Gun-On-Demand™
Millers Gun-On-Demand™ allows operators to simply pull the trigger on MIG gun or Spoolgun. Automatically detects and recalls the voltage, wire feed speed of the active gun.
MDX-250 MIG Gun w/ AccuLock™ MDX consumables
AccuLock liner loads from the front and locks at the front and back to insure proper alignment for flawless wire feed path. New rubber overmold and ball -and-socket handle design improves grip and reduces welder fatigue. New Industrial Bernard AccuLock™ MDX contact tips provide superior MIG arc performance
Not Included
- Shielding gas (for welding with solid wire [GMAW])
- Flux cored drive rolls (for welding with flux cored wire [FCAW])
- Spool Gun (for welding aluminum)
- Welding wire
- Personal safety products (helmet, gloves)
Processes
Flux Cored (FCAW)
MIG (GMAW)
Stick (SMAW)
TIG DC (GTAW-DC)
Aluminum Welding
| Title | Multimatic® 235 Multiprocess Welder w/ EZ-Latch™ Running Gear- 240V |
|---|---|
| Weldable Metals |
Steel Stainless Steel Aluminum |
| Input Voltage |
220/230/240 V 208 V |
| Input Phase | 1-Phase |
| Input Hz | 50 / 60 Hz |
| Current Type | DC |
| Max Open Circuit Voltage | 54 VDC |
| Portability |
Handle(s) Running Gear / Cart (Standard) |
| Weld Output | CC / CV |
| Warranty |
3 Years
Miller's True Blue Warranty |
