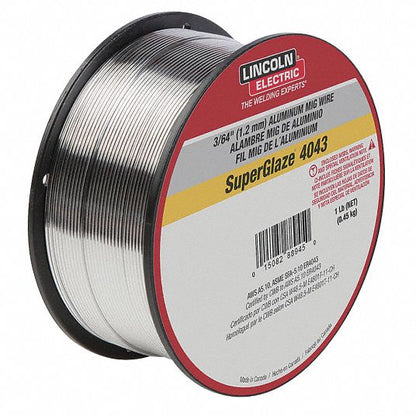

Lincoln SuperGlaze® 4043 3/64" Aluminum MIG Welding Wire (ED030310)
Save $0.17
Lincoln Electric 4043 Aluminum MIG (GMAW) Welding Wire
Sale price$9.35Regular price
$9.52
Free Shipping Over $75
Satisfaction Guaranteed
Secure Checkout
Enhance Your Gear With Accessories
Lincoln SuperGlaze® 4043 3/64" Aluminum MIG Welding Wire (ED030310)
Sale price$9.35Regular price
$9.52
Lincoln SuperGlaze® 4043 .035" Aluminum MIG Welding Wire - 1lb Spool (ED030310)
4043 Aluminum Silicon alloy is very commonly used for welding on 6XXX base materials and other heat treatable alloys. 4043 is a soft alloy, with good crack resistance and high penetration compared to other filler metals. It can be used for certain brazing applications and to weld on high silicon casts like A356. Welding of 5XXX with 4043 and other 4XXX filler metals should be avoided.
Features
- Designed for welding heat-treatable base alloys and more specifically the 6XXX series alloys
- Lower melting point and more fluidity than the 5XXX series filler alloys
- Low sensitivity to weld cracking with the 6XXX series base alloys
CONFORMANCE
| CONFORMANCES | SPECIFICATION | CLASSIFICATION |
|---|---|---|
| AWS | AWS A5.10 | ER4043 |
WIRE COMPOSITION
| Classification | %Be | %Mg | %Zn | %Cu | %Fe | %Mn | %Si | %Ti |
|---|---|---|---|---|---|---|---|---|
| ER4043 Requirement | 0.0003 max. | 0.05 max. | 0.10 max. | 0.30 max. | 0.8 max. | 0.05 max. | 4.5 - 6.0 | 0.20 max. |
| Typical Result | 0.0000 | 0.01 | 0.00 | 0.03 | 0.1 | 0.00 | 5.1 | 0.02 |
| Classification | %Be | %Mg | %Zn | %Cu | %Fe | %Mn | %Si | %Ti |
|---|---|---|---|---|---|---|---|---|
| ER4043 Requirement | 0.0003 max. | 0.05 max. | 0.10 max. | 0.30 max. | 0.8 max. | 0.05 max. | 4.5 - 6.0 | 0.20 max. |
| Typical Result | 0.0000 | 0.01 | 0.00 | 0.03 | 0.1 | 0.00 | 5.1 | 0.02 |
TYPICAL OPERATING PROCEDURES
| Diameter | Shielding Gas |
Gas Flow
L/min (CFH) |
Polarity |
CTWD
mm (in.) |
Wire Feed Speed
m/min (in/min) |
Voltage
volts |
Approx. Current
amps |
|---|---|---|---|---|---|---|---|
| 0.9 mm (.035") | 100% Ar | 14-24 (30-50) | DC+ | 12.7 (¹/₂) - 15.9 (⁵/₈) | 14.9 (585) | 23.3 | 170 |
| 1.2 mm (3/64") | 100% Ar | 14-24 (30-50) | DC+ | 12.7 (¹/₂) - 15.9 (⁵/₈) | 8.9 (350) | 25.2 | 195 |
| 1.6 mm (1/16") | 100% Ar | 14-24 (30-50) | DC+ | 12.7 (¹/₂) - 15.9 (⁵/₈) | 6.4 (250) | 24.0 | 240 |
