Miller Multimatic 220 AC/DC Multiprocess Welder
Save $1,108.00
Gives you the freedom to weld any process including AC/DC TIG, MIG, flux-cored, and stick with one portable, powerful, easy to use machine. Setup and switching processes are fast and easy, all while ensuring excellent arc quality using either 120 or 240 volt power. Welds up to 3/8" (MIG and Stick) or 1/4" (TIG).
Sale price$4,199.00Regular price
$5,307.00
-
Earn 8398 Reward Points
Free Shipping Over $75
Satisfaction Guaranteed
Secure Checkout
Enhance Your Gear With Accessories
Miller Multimatic 220 AC/DC Multiprocess Welder
Sale price$4,199.00Regular price
$5,307.00

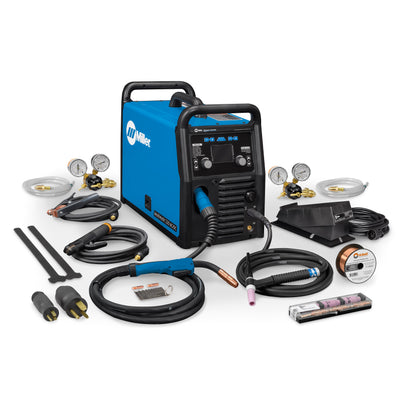

What's Included
All in One
Take on more projects with one machine that has MIG, Stick, AC and DC TIG.
QuickTech™
- Automatically determines the polarity. MIG gun and TIG torch can stay connected at the same time.
- Automatically switches to the right process. Just hit the trigger or the foot control and the machine automatically changes.
- Automatically recalls the settings from the last process used.
Color LCD with Auto-Set™ Elite
Auto-Set™ Elite can be used on multiple materials and all processes with the ability to fine-tune your settings. Simple to set up and use.
Multi-voltage plug (MVP™)
Multi-voltage plug (MVP™) allows connection to common 120 or 240 V power receptacles without the use of any tools— simply choose the plug that fits the receptacle and connect to the power cord.
Pro-Set™ Feature
Eliminates the guesswork when setting weld parameters. Simply adjust control until Pro-Set™ appears on the display and the number turns blue. Available for AC Balance and Frequency (TIG), DC Pulse (TIG), and DIG (Stick).
14-Pin Controlled Operator Alternatives
The standard 14-pin connector lets you choose your control for a customized experience, whether it’s a foot control, fingertip control, or wireless foot control.
Weighing Only 56 Pounds
The Multimatic® 220 AC/DC can go where the work is, plus the added convenience of one machine versus two or more.
Dependable Arc Starts
Provides High-Frequency, non-contact arc starting to eliminate tungsten and material contamination time after time.
Processes
Flux Cored (FCAW)
MIG (GMAW)
Pulsed TIG (GTAW-P)
Stick (SMAW)
TIG (GTAW)
TIG AC (GTAW-AC)
TIG DC (GTAW-DC)
General Specifications
| Title | Multimatic® 220 AC/DC |
|---|---|
| Weldable Metals |
Aluminum Stainless Steel Steel |
| Input Voltage |
110/115/120 V 220/230/240 V |
| Input Phase | 1-Phase |
| Input Hz | 50 / 60 Hz |
| Current Type | AC / DC |
| Max Open Circuit Voltage | 45 VDC |
| Wire Feed Speed |
1.5 m/min - 15.2 m/min 60 IPM - 600 IPM |
| Portability |
Handle(s) Running Gear / Cart (Optional) |
| Weld Output | CC / CV |
| Net Width | 11.25 in |
| Net Height | 17.5 in |
| Net Length | 21.5 in |
| Net Weight | 56 lbs |
| Warranty |
3 Years
Miller's True Blue Warranty |
