Miller Maxstar 161 STL DC TIG/Stick Welder (120/240v)
Save $472.00
Best of class - Provides maximum portability and performance in the most compact TIG/Stick packages in the industry. Dependability and performance all in one machine.
Sale price$1,775.00Regular price
$2,247.00
-
Earn 3550 Reward Points
Free Shipping Over $75
Satisfaction Guaranteed
Secure Checkout
Enhance Your Gear With Accessories
Miller Maxstar 161 STL DC TIG/Stick Welder (120/240v)
Sale price$1,775.00Regular price
$2,247.00

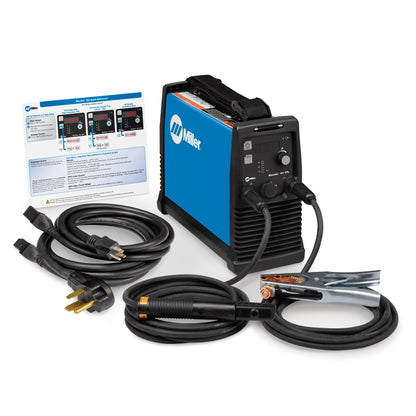

What's Included
Tig Package Includes:
Use on 120 AND 240 Volt Input Power
Separate 120 and 240 volt power cords disconnect from the rear panel of the machine without the use of any tools to allow your to common 120 and 240 volt power receptacles.
Compact Design Allows for Great Portability
Weighing in at 13 lbs. and featuring a convenient handle/shoulder strap, this little inverter-based TIG/Stick machine can be taken from location to location.
Low Power Draw
By utilizing an inverter-based power source in the Maxstar® 161, superior arc starts and excellent weld puddle control are provided in both the TIG and Stick settings - all in a small, light-weight package.
Easy-to-Use
- Turn power on.
- Select process: Lift-Arc TIG, Stick, or 6010 Stick.
- Set amperage. Then weld! It’s as easy as 1, 2, 3.
6010 Stick Electrode Capability
Superior Stick arc performance even on the difficult-to-run electrodes like E6010.
No More "Sticky" Electrodes
With Miller's Adaptive Hot Start™ technology, you no longer have to worry about those difficult-to-strike electrodes.
Conserve Your Electrodes
With the Stick-Stuck feature the machine detects if the electrode is stuck to the part and turns the welding output off to safely and easily remove the electrode.
No Need For A Gas Valve On Your TIG Torch
With a built-in gas solenoid, the Maxstar® 161 eliminates the need for a bulky TIG torch with a gas valve
5 Amp TIG Capability
Allows users to weld thinner materials than other machines in this category.
Not Included
Processes
Stick (SMAW)
TIG (GTAW)
TIG DC (GTAW-DC)
General Specifications
| Title | Maxstar® 161 STL 120-240 V |
|---|---|
| Industries Interests |
Aerospace Boat / Yacht Construction Heavy Equipment Manufacturing High Purity Processing Infrastructure Maintenance and Repair - Field Operations Maintenance and Repair - In Plant Manufacturing Railcar Shipbuilding Work / Service Trucks Mechanical Contracting Metal Art / Sculptures |
| Material Thickness | Steel: 0.020 in. - 3/16 in. |
| Weldable Metals |
Steel Stainless Steel |
| Input Voltage |
110/115/120 V 220/230/240 V |
| Input Phase | 1-Phase |
| Input Hz | 50 / 60 Hz |
| Current Type | DC |
| Max Open Circuit Voltage | 48 VDC |
| Amperage Min | 5 A |
| Amperage Max | 160 A |
| Portability |
Handle(s) Strap |
| Weld Output | CC |
| Warranty |
3 Years
Miller's True Blue Warranty |
